Vacuum Lifting Equipment

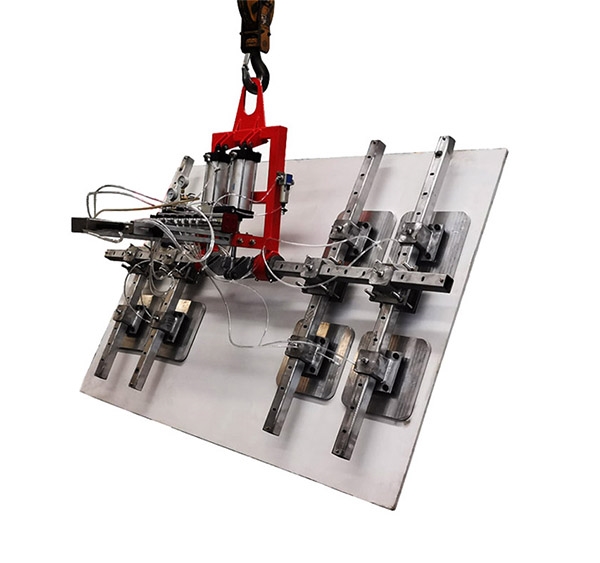

HLSL-1000 is a vaccum lifter associated with crane for lifting, tilting and transporting the stone slab in workshop. The lifting capability is up to 1000 kgs. Other lifting capacities can be customized.
| 称号 | 单元 | HLSL-1000 |
| 装载才能 | kg | 1000 |
| 真空垫数目 | pc | 2/4/8 |
| 真空垫尺寸 | mm | 350 x 350 |
| 真空值 | Pma | 0 - 0.06 - 0.08 |
| 真空任务时候 | s | 3-8 |
| 真空吸力坚持时候 | s | 120 - 3000 |
| 所需任务气压 | zp | 4-8 |
| 倾斜度 | ° | 0 - 90 |
| 主梁尺寸 | mm | 2500x60x60 |
| 横梁尺寸 | mm | 1500x60x60 |
| 总分量 | kg | 220 |
